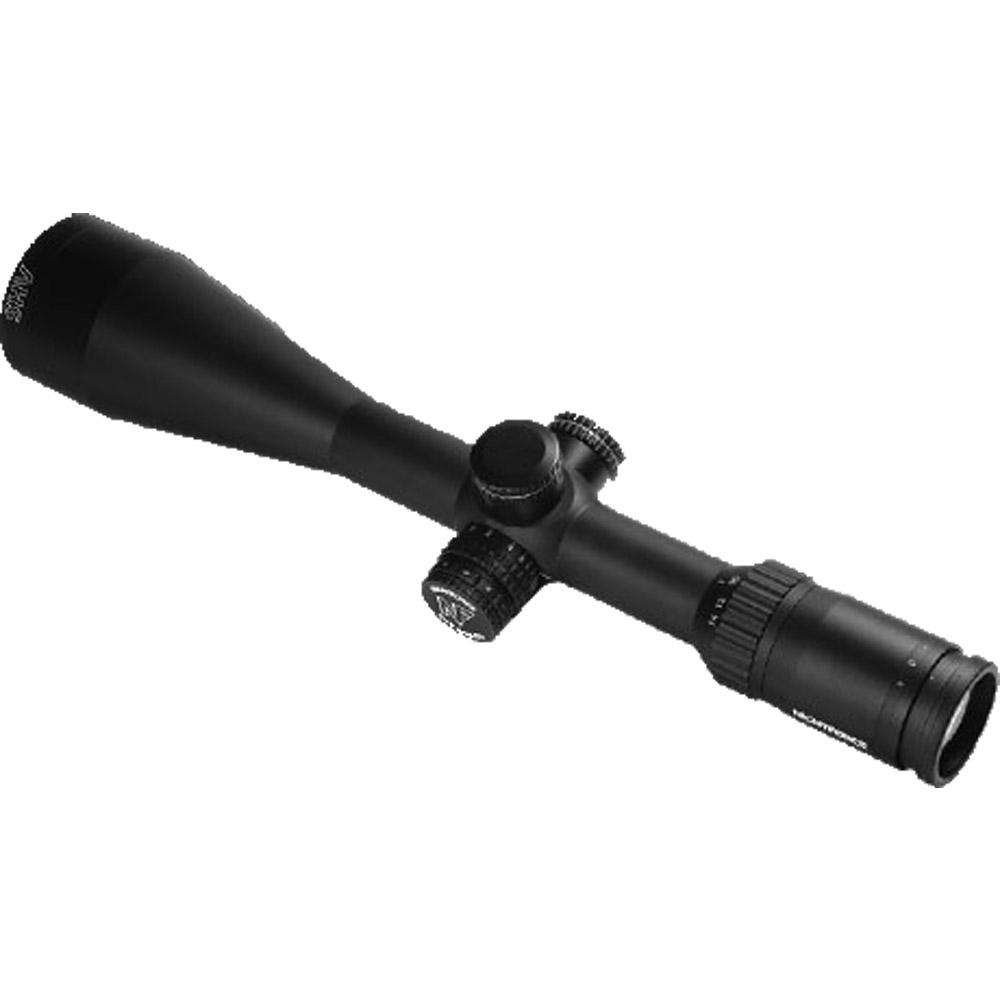

Nightforce Shv 4- 14x56 .250moa Ihr


$999.99

SPECIFICATIONS SHV 4-14 x56
Focal Plane Second
Magnification Range 4-14x
Objective lens diameter 56mm
Tube diameter 30 mm/1.18 in
Internal adjustment range (MOA/Mil) e: 100 MOA
w: 70 MOA
e: 27.3 Mil
w: 19.1 Mil
Click value .250 MOA
Calibrated Ranging Power 14x
Parallax adjustment 25 yd–∞
Exit pupil diameter 4x: 12.0 mm
14x: 3.6 mm
Eye relief 80-90 mm/3.15-3.54 in
Field of view @100 yards/100 meters 4x: 24.9 ft
14x: 7.3 ft
4x: 7.59 m
14x: 2.23 m
Objective outer diameter 65 mm
Eyepiece outer diameter 43 mm
Overall length (inches/mm) 14.8 in/376 mm
Weight (ounces/grams) 26.9 oz/763g* 28.5 oz/808g**
Mounting length (inches/mm) 5.79 in/147 mm
Front/Rear Mounting Length 2.05 in /2.00 in
PTL (Power Throw Lever) Accessory
Reticles available IHR™
MOAR™
Illumination Optional
  * Non-Illuminated
** Illuminated
Elevation Feature

  • Specification
  • Reviews
SPECIFICATIONS SHV 4-14 x56
Focal Plane Second
Magnification Range 4-14x
Objective lens diameter 56mm
Tube diameter 30 mm/1.18 in
Internal adjustment range (MOA/Mil) e: 100 MOA
w: 70 MOA
e: 27.3 Mil
w: 19.1 Mil
Click value .250 MOA
Calibrated Ranging Power 14x
Parallax adjustment 25 yd–∞
Exit pupil diameter 4x: 12.0 mm
14x: 3.6 mm
Eye relief 80-90 mm/3.15-3.54 in
Field of view @100 yards/100 meters 4x: 24.9 ft
14x: 7.3 ft
4x: 7.59 m
14x: 2.23 m
Objective outer diameter 65 mm
Eyepiece outer diameter 43 mm
Overall length (inches/mm) 14.8 in/376 mm
Weight (ounces/grams) 26.9 oz/763g* 28.5 oz/808g**
Mounting length (inches/mm) 5.79 in/147 mm
Front/Rear Mounting Length 2.05 in /2.00 in
PTL (Power Throw Lever) Accessory
Reticles available IHR™
MOAR™
Illumination Optional
  * Non-Illuminated
** Illuminated
Elevation Feature
